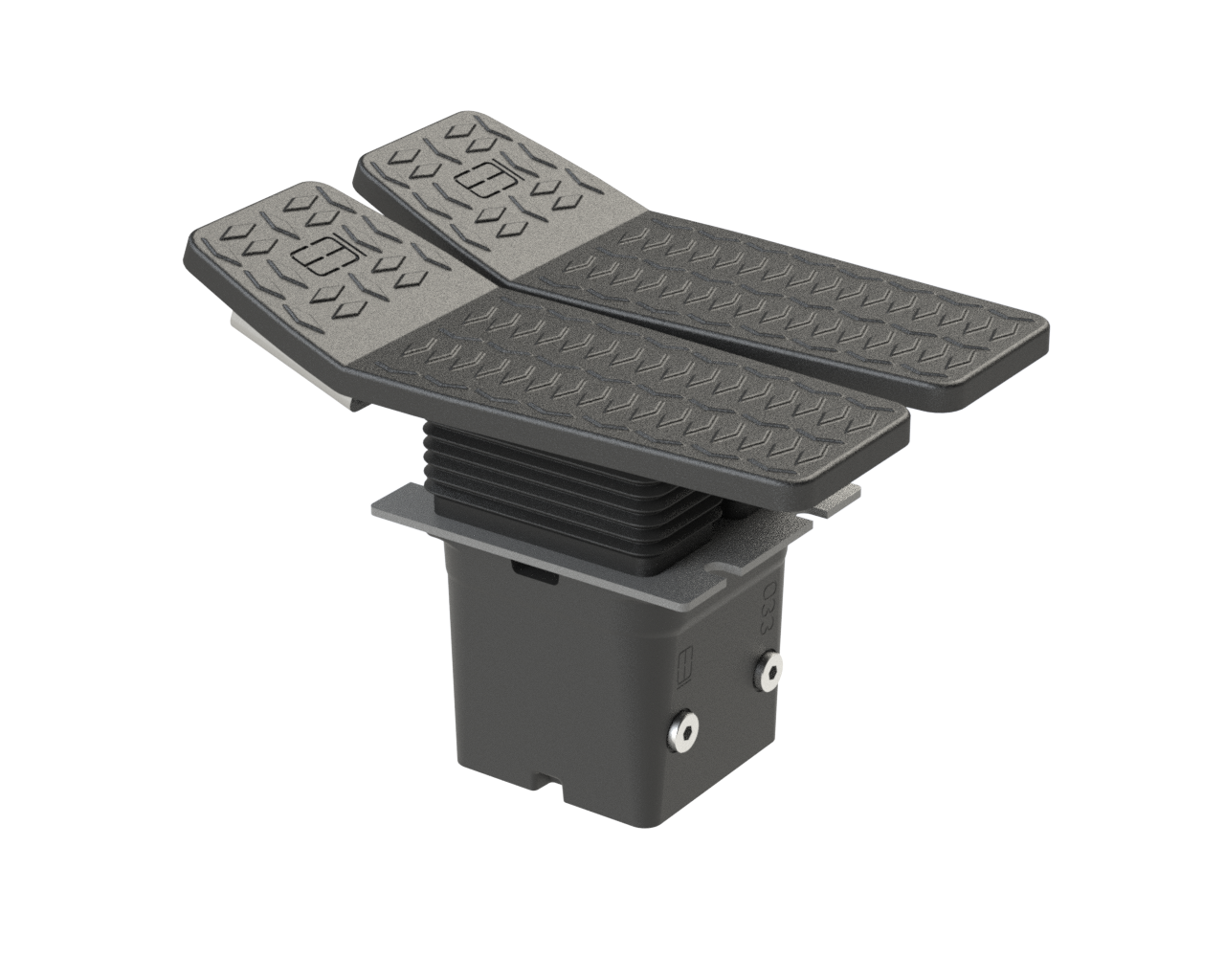

ESP04A
Functions and Benefits
- Progressive and sensitive operation.
- Precise control and precise metering.
- Low operating effort.
- Optimised angular movements of foot pedal.
- Control element protected with rubber bellow.
- High durability and maintenance free. Download Catalogue
Maximum Input Pressure
100 bar - [1450 psi]
Max Back Pressure on Tank Line
3 bar - [43.5 psi]
Control Max Flow on Ports
15 l/min - [4 GPM]
Port Size
G 1/4 BSP – [SAE6]
EBI motion controls servocontrols foot pedals are used to control the work and drive hydraulics of modern mobile machines with high accuracy, safety and optimal performance.
ESP04A are suited for specialized applications for a variety of mobile equipment such as:
